I was wonderin if anyone with a 93-97 v6 camaro could take like two pics of their Cirpanteen belt system, a top view and sort of a side view.


Rep Power: 910

you mean serpentine? and which engine? 93-95 has the 3.4, late 95-97 has the 3.8. and how possible do you think it is to get a side shot of the front of the engine bay? these cars suck. lol.


Rep Power: 715

yea my bad left out some pretty important stuff. Yea its possible to get a sorta side shot. I need a pic of a 3.4 L SERPENTINE belt system. Just for comparison. Just a lil help would be appreciated. Mainly to see the alignment of the system. Mine seems to be off abit.


Rep Power: 910

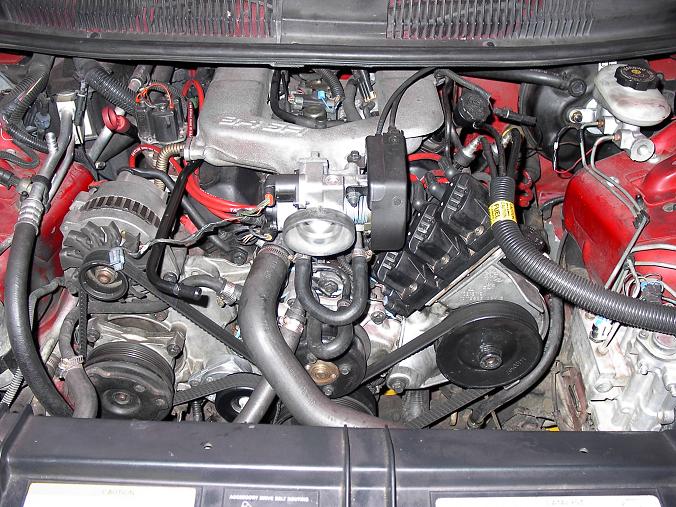

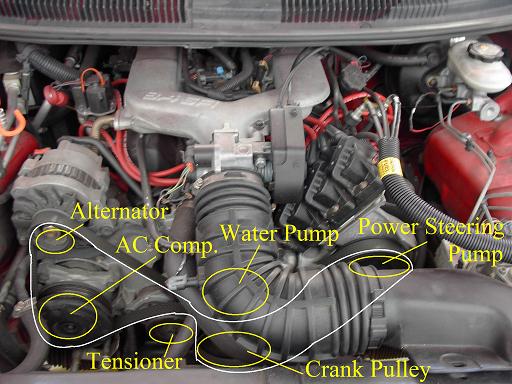

i still have pics from my project of the system and i did a lil diagram for ya:


Rep Power: 910

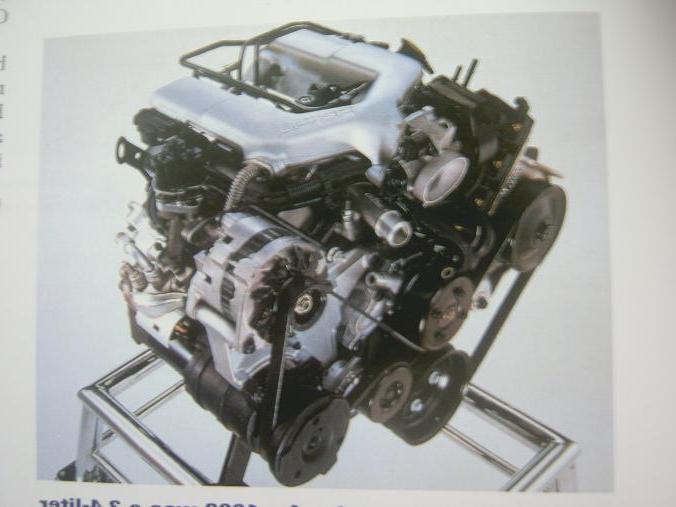

here i found this in my camaro book...might help...


Rep Power: 715

lol thanks, didnt really think i was gonna get any help on this one. Yea SOMETHING in my system is off because the belt has been rubbing too far on the side and has cut the belt down to basically half its size...Im guessing the new belt tensioner i had put on wasnt put on right...looks aliiitttllle too far out... hell possible i might have wrong part but right box?


Rep Power: 1069

that is possible, did you put a new belt on when you replaced the tensioner?


Rep Power: 715

yup, im willing to bet something is off with the tensioner... I'll look further into it...Oh and about that problem i had with the spark plugs and wires.... I Waited for the engine to cool off and found that one of the wires to a sparkplug had split and was sparking...so i cut the wire and re routed it back into the sparkplug, good as new.


Rep Power: 1069

if it split replace it, don't redneck the car back together.If the tensioner doesn't line up it's the wrong part
